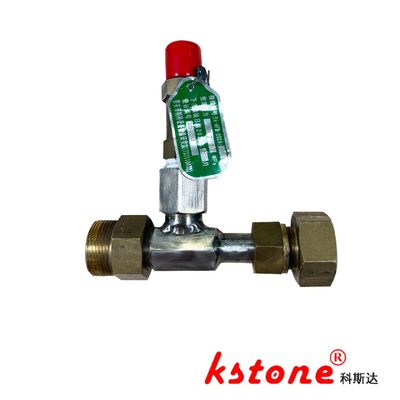

Spring-Loaded Safety Valve, Customizable Pressure Limit & Threads, 0.7 Mpa Set Pressure for Boilers, Pressure Vessels

  • Spring-Loaded Safety Valve, Customizable Pressure Limit & Threads, 0.7 Mpa Set Pressure for Boilers, Pressure Vessels
Место происхождения Шанхай
Фирменное наименование KSTONE
Сертификация ISO9000
Номер модели Предохранительный клапан с пружинным приводом
Количество мин заказа 10
Цена $1000
Упаковывая детали Картон / деревянная коробка
Время доставки 10 рабочих дней
Условия оплаты , Т/т
Поставка способности 1000

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Выделить

Customizable Pressure Spring-Loaded Safety Valve

,

Vessels Spring-Loaded Safety Valve

,

0.7 Mpa Spring-Loaded Safety Valve
Оставьте сообщение
Характер продукции
Spring-loaded safety valve, Customizable

Spring-Loaded Safety Valve, Customizable Pressure Limit & Threads, 0.7 Mpa Set Pressure for Boilers, Pressure Vessels
Our spring-loaded safety valve is a remarkable automatic pressure relief protection device that operates by balancing the medium pressure with spring force. It is commonly applied in equipment like air compressors and plays a crucial role in various pressure - bearing systems.

Specifically, this type of safety valve is mainly used in pressure - bearing equipment or systems such as boilers, pressure vessels, and pipelines. When the pressure inside the system exceeds the preset safety value, it will automatically open to discharge the medium, thereby effectively preventing overpressure accidents.

The core working principle of our spring-loaded safety valve lies in achieving automatic opening and closing through the balance between the system pressure and the preload force of the spring. In normal conditions, the valve remains closed. Once the pressure exceeds the set limit, the valve disc is pushed up to relieve the pressure. When the pressure drops back to a safe level, the spring resets, and the valve closes again. This reliable mechanism ensures the safe and stable operation of your equipment, providing you with peace of mind in industrial applications.
Parameter Description
Pressure Limit Customizable as per requirements
End Threads Customizable as per requirements
Set Pressure 0.7 Mpa

Spring-Loaded Safety Valve, Customizable Pressure Limit & Threads, 0.7 Mpa Set Pressure for Boilers, Pressure Vessels 0
